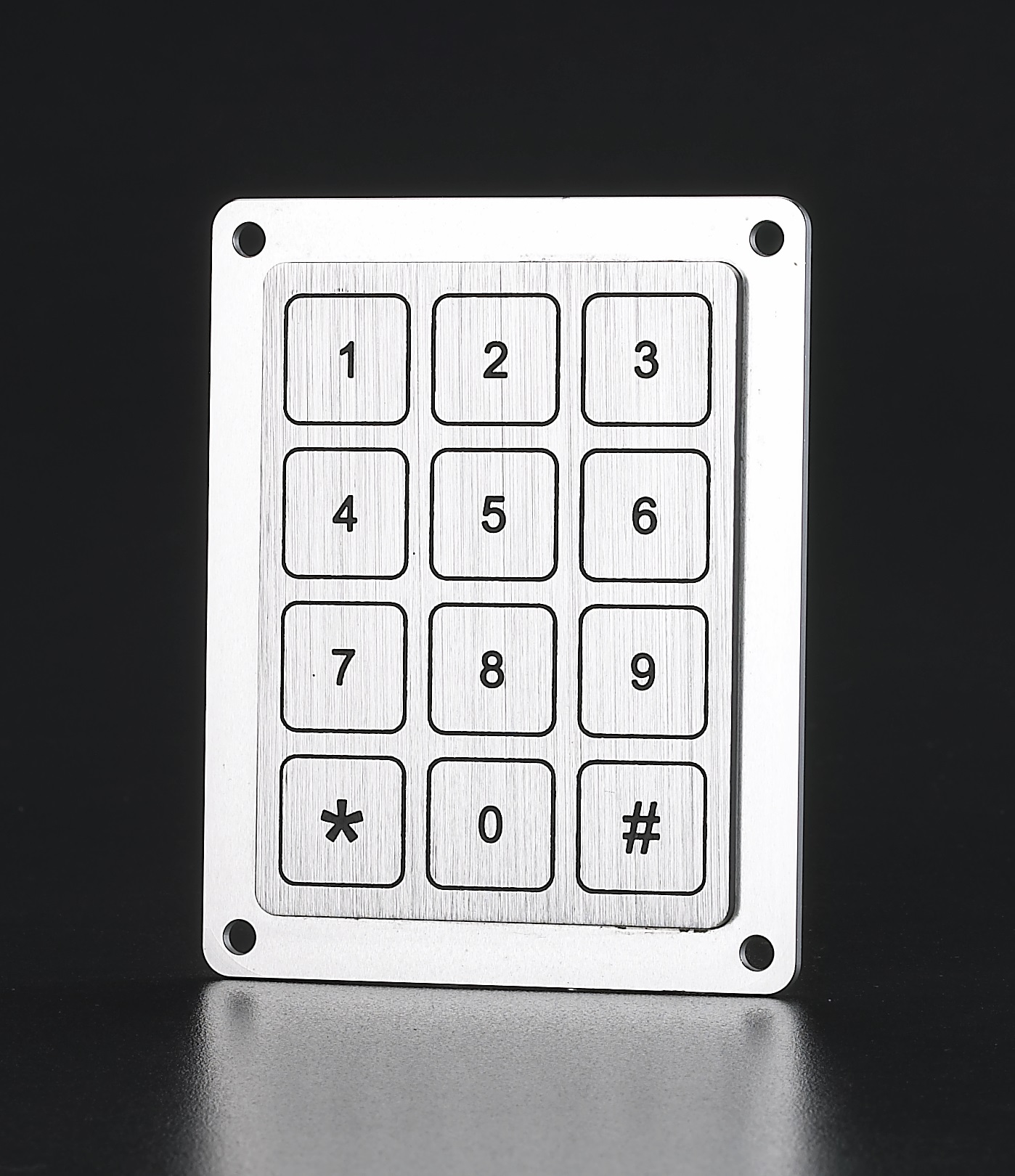

Maximum reliability and durability, Ideal for use in rough environments.
IP68 Dust and water resistant, Sea-water and detergent resistant.
No moving part, maintenance free.
Made of one piece of solid metal, totally rugged.
Potted switching unit at rear seals against all contamination and prevents freezing
Flexible anodize print or laser engrave layout
Switching voltage max.: 24VDC
Switching current max.: 200mA
Lifetime electrical: 15mill.
Insulation resistance (OFF = not actuated): > 5mΩ
Initial contact Resistance (ON = actuated): < 7.5Ω
Actuating force: 5-15N
Temperature: -40 to +125°C
Protection class: IP68
Dimension:62.0*81.0mm
Mounted:Rear mounted
Materials Front Panel Stainless Steel, Aluminum
Lettering Laser engraving/anodize printing
Available Interfaces RS232 / RS485 / AT / PS2 / USB
Application:
access controls,digital systems,vending machines.
