Quick Details:

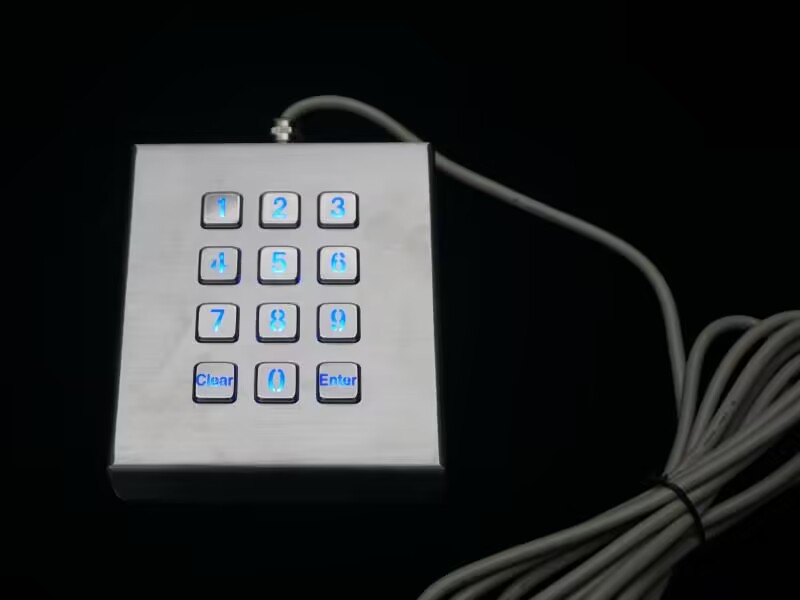

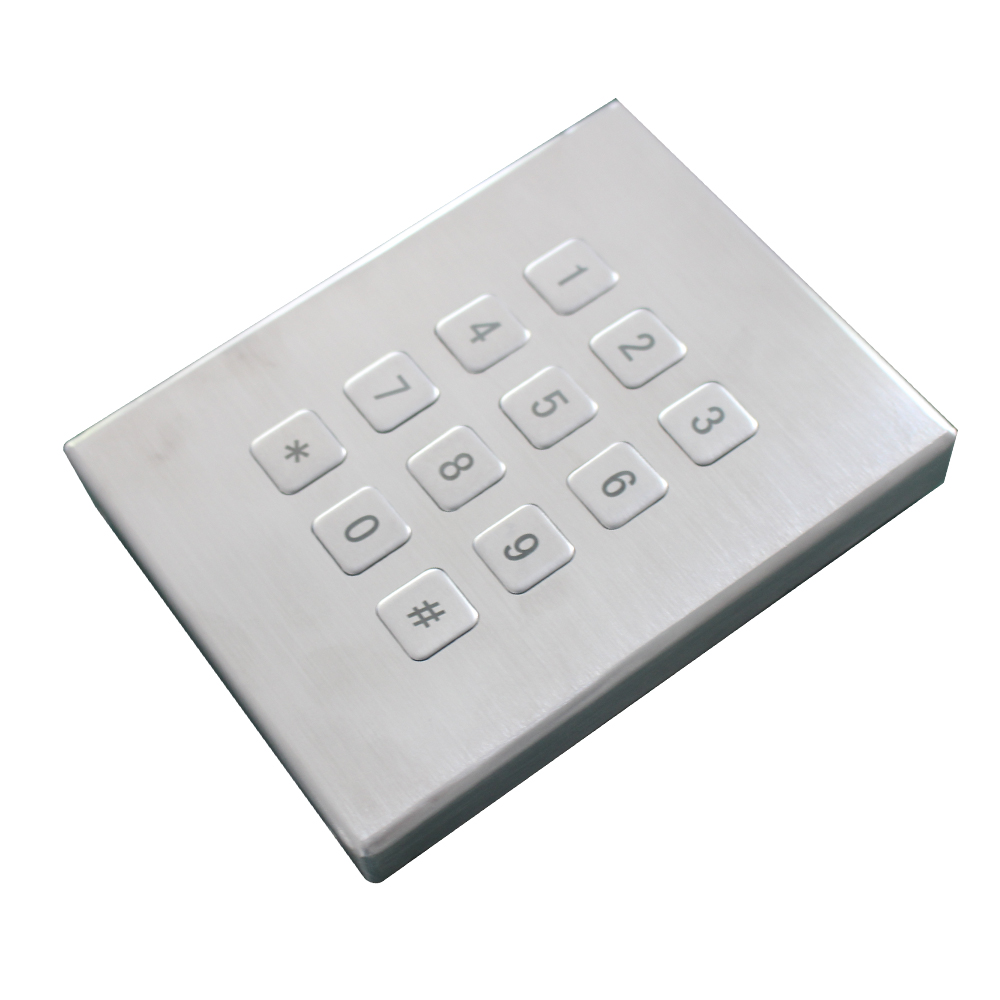

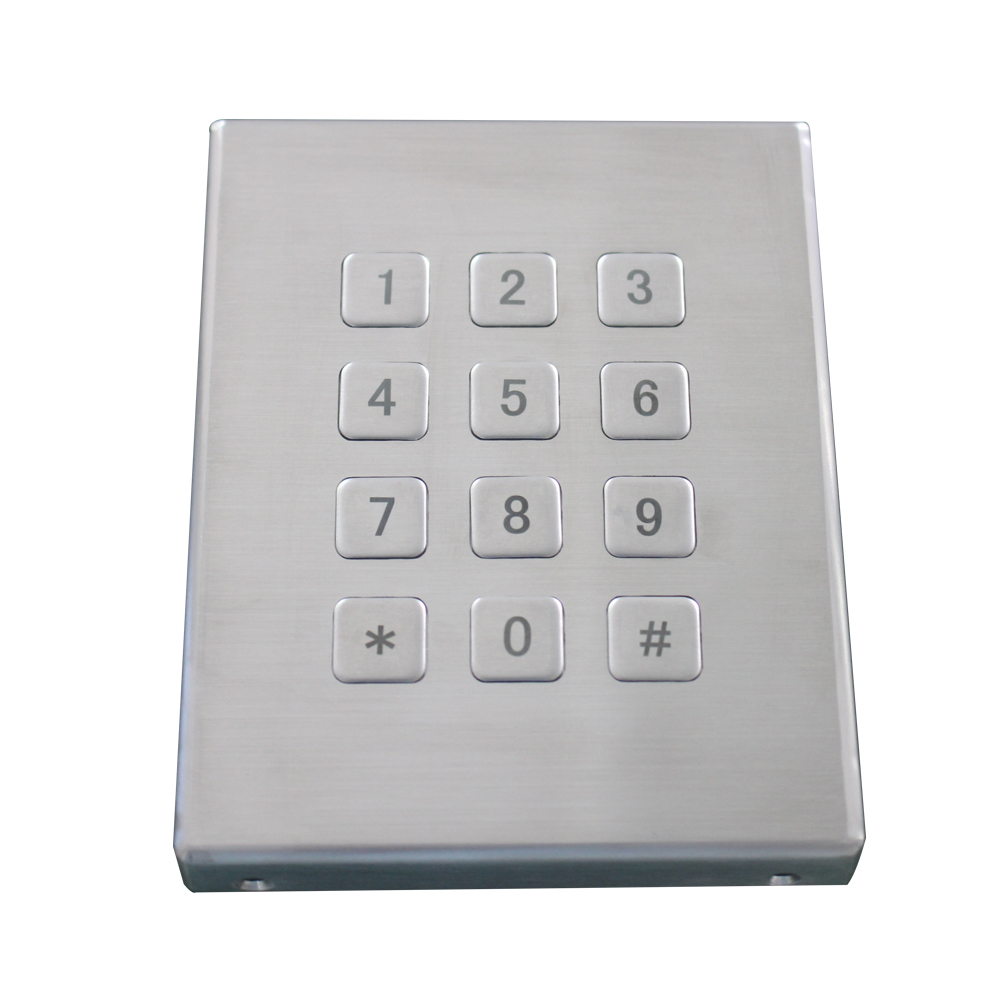

1. 12 Keys Vandal proof IP65 stainless steel, Dot matrix keypad.

2. carbon-on-gold key switch technology.

3. Front mounting or rear mounting is available.

4.symbol and letters on keys can be designed according to customer’s requirements.

Descriptions:

1. 12 Keys IP65 dynamic compact format vandal proof , stainless steel Industrial numeric keypad with industrial PCB electronics.

2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise.

3. Ease of installation and maintenance.

4.letter and symbol can be customized according to customer’s requirements.

Special Features:

1. Imposing stainless steel design, specially designed keypad meet the highest demands with regard to design, functionality

longevity and high protection level.

2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under

extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Applications:

A: unsupervised or semi -supervised positions of varied access control systems,security system, household applications.

B:Industry application.

C: shopping malls, hotels, airports, railway stations and other public areas,

D: Inquiry self-service terminal ,Ticket vending machines, renting,gas stations, Internet public telephone ,

Industrial automation,access control,food industry,chemical industry,info points,multimedia kiosk,military equipments,payment system,video telephone etc.

•


  Specifications:

  MECHANICAL DATA
  keys	12 keys
  Switching material	carbon-on-Gold key switch technology PCB
  Actuation Force	0.6 N+/-0.1N (pressure point)
  Frame/keys materials	Superloy
  Dimensions	100.0 mm * 130.0mm (L x W )
  G.W.	240g approx
  Key top style	Protuberant rectangular keys, laser engraved & etched legends on keys are available
  Key Size	14.0mm x 14.0mm
  Life span	more than 2000,000 cycles



  ENVIRONMENTAL ADAPTABILITY
  Operating temperature	-20℃ to +75℃
  Storage temperature	-35℃ to +85℃
  Operating RH	30-90%RH
  Atmospheric pressure	60-106Kpa



  RELIABILITY
  Protection Level	IP65(front panel)
  Vandal resistant	IK09
